《机器学习实战》第二章 端到端的机器学习项目

端到端的机器学习项目实例

《机器学习实战：基于Scikit-Learn，Keras和TensorFlow》中第二章内容，英文代码可参考github - handson-ml2/02_end_to_end_machine_learning_project.ipynb

下面内容对应的Jupyter Notebook代码位于github：2.end_to_end_machine_learning_project.ipynb

数据集预处理

数据集下载位置：https://raw.githubusercontent.com/ageron/handson-ml2/master/datasets/housing/housing.tgz

将 housing.tgz 文件放到 ./datasets/housing 下.

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from pathlib import Path
import tarfile

DATASETS_ROOT = r"https://raw.githubusercontent.com/ageron/handson-ml2/master/datasets"
HOUSING_PATH = Path.cwd().joinpath('./datasets/housing')
HOUSING_URL = DATASETS_ROOT + "/housing/housing.tgz"
print('数据集路径:', HOUSING_PATH)

def fetch_housing_data(url=HOUSING_URL, path=HOUSING_PATH):
    path.mkdir(parents=True, exist_ok=True)  # 创建本地目录
    save_path = path.joinpath('housing.tgz')  # 保存路径
    housing_tgz = tarfile.open(save_path)
    housing_tgz.extractall(path=path)
    housing_tgz.close()

fetch_housing_data()

数据集路径: D:\yy\DeepLearning\ml-scikit-keras-tf2\datasets\housing

def load_housing_data(path=HOUSING_PATH):
    csv_path = path.joinpath('housing.csv')
    return pd.read_csv(csv_path)

df = load_housing_data()

df.head()

	longitude	latitude	housing_median_age	total_rooms	total_bedrooms	population	households	median_income	median_house_value	ocean_proximity
0	-122.23	37.88	41.0	880.0	129.0	322.0	126.0	8.3252	452600.0	NEAR BAY
1	-122.22	37.86	21.0	7099.0	1106.0	2401.0	1138.0	8.3014	358500.0	NEAR BAY
2	-122.24	37.85	52.0	1467.0	190.0	496.0	177.0	7.2574	352100.0	NEAR BAY
3	-122.25	37.85	52.0	1274.0	235.0	558.0	219.0	5.6431	341300.0	NEAR BAY
4	-122.25	37.85	52.0	1627.0	280.0	565.0	259.0	3.8462	342200.0	NEAR BAY

df.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 20640 entries, 0 to 20639
Data columns (total 10 columns):
 #   Column              Non-Null Count  Dtype
---  ------              --------------  -----
 0   longitude           20640 non-null  float64
 1   latitude            20640 non-null  float64
 2   housing_median_age  20640 non-null  float64
 3   total_rooms         20640 non-null  float64
 4   total_bedrooms      20433 non-null  float64
 5   population          20640 non-null  float64
 6   households          20640 non-null  float64
 7   median_income       20640 non-null  float64
 8   median_house_value  20640 non-null  float64
 9   ocean_proximity     20640 non-null  object
dtypes: float64(9), object(1)
memory usage: 1.6+ MB

df['ocean_proximity'].value_counts()

<1H OCEAN     9136
INLAND        6551
NEAR OCEAN    2658
NEAR BAY      2290
ISLAND           5
Name: ocean_proximity, dtype: int64

df.describe()

	longitude	latitude	housing_median_age	total_rooms	total_bedrooms	population	households	median_income	median_house_value
count	20640.000000	20640.000000	20640.000000	20640.000000	20433.000000	20640.000000	20640.000000	20640.000000	20640.000000
mean	-119.569704	35.631861	28.639486	2635.763081	537.870553	1425.476744	499.539680	3.870671	206855.816909
std	2.003532	2.135952	12.585558	2181.615252	421.385070	1132.462122	382.329753	1.899822	115395.615874
min	-124.350000	32.540000	1.000000	2.000000	1.000000	3.000000	1.000000	0.499900	14999.000000
25%	-121.800000	33.930000	18.000000	1447.750000	296.000000	787.000000	280.000000	2.563400	119600.000000
50%	-118.490000	34.260000	29.000000	2127.000000	435.000000	1166.000000	409.000000	3.534800	179700.000000
75%	-118.010000	37.710000	37.000000	3148.000000	647.000000	1725.000000	605.000000	4.743250	264725.000000
max	-114.310000	41.950000	52.000000	39320.000000	6445.000000	35682.000000	6082.000000	15.000100	500001.000000

df.hist(bins=50, figsize=(18, 12))
plt.show()

np.random.seed(42)  # 固定初始随机种子
def split_train_test(df, test_ratio):
    shuffled_indices = np.random.permutation(len(df))
    test_size = int(len(df) * test_ratio)
    test_indices = shuffled_indices[:test_size]
    train_indices = shuffled_indices[test_size:]
    return df.iloc[train_indices], df.iloc[test_indices]

train_df, test_df = split_train_test(df, 0.2)
print('训练集大小:', len(train_df), '测试集大小:', len(test_df))

训练集大小: 16512 测试集大小: 4128

两种划分训练集与测试集的方法

1. 使用上述方式，确定随机种子后，可以保证对于同一数据集的随机结果保持相同，但缺点是如果加入新的数据，划分出的训练集与测试集内容可能完全不同.

2. 利用每个样本的Hash值，作为划分标准，一个样本的Hash值需要是该样本的唯一标识符，例如：“索引”，“房产的经纬度”

# 利用Hash值进行划分
from zlib import crc32

def test_check(identifier, test_ratio):
    return crc32(np.int64(identifier)) & 0xffffffff < test_ratio * 2**32  # 左侧为使用crc32计算出的Hash值

def split_train_test_by_hash(df, test_ratio, id_column):
    ids = df[id_column]
    is_test = ids.apply(lambda id_: test_check(id_, test_ratio))
    return df.loc[~is_test], df.loc[is_test]

df_idx = df.reset_index()
train, test = split_train_test_by_hash(df_idx, 0.2, 'index')
print('训练集大小:', len(train_df), '测试集大小:', len(test_df))

训练集大小: 16512 测试集大小: 4128

使用Scikit-Learn中的方法对数据进行划分

1. 设定随机种子进行均匀划分，train_test_split(df, test_size=0.2, random_state=42)：df为数据集，test_size为测试集比例，random_state为随机种子.

2. 分层划分数据集，由于测试集需要代表整个数据集的整体信息，首先对数据特征进行层划分，在每一层中，我们希望都要有足够的信息来表示这种类别，表示该层的重要程度.

首先利用 pd.cut() 对层进行划分，例如划分为 $[0, 1.5, 3, 4.5, 6, \infty]$ 这样 $5$ 段.

再使用Scikit中的api函数实例化划分模型 split=StratifiedShuffleSplit(n_splits=1, test_size=0.2, random_state=42)：n_splits 表示划分的总数据集个数，test_size 为测试集占比，random_state 表示随机种子.

最后通过迭代方式生成训练集与测试集：train_idx, test_idx = next(split.split(df, df['income_cat']))（由于只生成一个数据集，所以可以直接用next获取第一个迭代结果）

from sklearn.model_selection import train_test_split

train, test = train_test_split(df, test_size=0.2, random_state=42)
print('训练集大小:', len(train_df), '测试集大小:', len(test_df))

训练集大小: 16512 测试集大小: 4128

df['income_cat'] = pd.cut(df['median_income'], bins=[0., 1.5, 3., 4.5, 6., np.inf], labels=[1,2,3,4,5])
df['income_cat'].hist()
plt.show()

from sklearn.model_selection import StratifiedShuffleSplit

split = StratifiedShuffleSplit(n_splits=1, test_size=0.2, random_state=42)
# for train_idx, test_idx in split.split(df, df['income_cat']):
train_idx, test_idx = next(split.split(df, df['income_cat']))
strat_train = df.loc[train_idx]
strat_test = df.loc[test_idx]

strat_income_ratio = strat_test['income_cat'].value_counts() / len(strat_test)
base_income_ratio = df['income_cat'].value_counts() / len(df)
test_income_cate = pd.cut(test['median_income'], bins=[0., 1.5, 3., 4.5, 6., np.inf], labels=[1,2,3,4,5])
random_income_ratio = test_income_cate.value_counts() / len(test)

def calc_error(base, x):
    return (x - base) / base * 100
diff_test_sample = pd.concat([base_income_ratio, strat_income_ratio, random_income_ratio,
                              calc_error(base_income_ratio, strat_income_ratio),
                              calc_error(base_income_ratio, random_income_ratio)], axis=1)
diff_test_sample.columns = ['Overall', 'Stratified', 'Random', 'Strated error %', 'Random error %']
diff_test_sample = diff_test_sample.sort_index()
diff_test_sample

	Overall	Stratified	Random	Strated error %	Random error %
1	0.039826	0.039971	0.040213	0.364964	0.973236
2	0.318847	0.318798	0.324370	-0.015195	1.732260
3	0.350581	0.350533	0.358527	-0.013820	2.266446
4	0.176308	0.176357	0.167393	0.027480	-5.056334
5	0.114438	0.114341	0.109496	-0.084674	-4.318374

# 删除income_cat该列
for ds in (strat_train, strat_test):
    ds.drop('income_cat', axis=1, inplace=True)

数据集可视化

config = {
    "font.family": 'serif', # 衬线字体
    "figure.figsize": (6, 6),  # 图像大小
    "font.size": 16, # 字号大小
    "font.serif": ['SimSun'], # 宋体
    "mathtext.fontset": 'stix', # 渲染数学公式字体
    'axes.unicode_minus': False # 显示负号
}
plt.rcParams.update(config)

df = strat_train.copy()
df.plot(kind='scatter', x='longitude', y='latitude', alpha=0.1, xlabel='经度', ylabel='纬度', figsize=(6, 6))
plt.show()

import matplotlib as mpl
ax = df.plot(kind='scatter', x='longitude', y='latitude', alpha=0.4,
        s=df['population']/100, label='人口数', figsize=(10, 7),
        c='median_house_value', cmap='jet', colorbar=False,
        xlabel='经度', ylabel='纬度')
ax.figure.colorbar(plt.cm.ScalarMappable(
    norm=mpl.colors.Normalize(vmin=df['median_house_value'].min(), vmax=df['median_house_value'].max()), cmap='jet'),
    label='房价中位数', alpha=0.4)
plt.legend()
plt.show()

数据相关性

# Pearson's correlation coefficient
corr_matrix = df.corr()
corr_matrix['median_house_value'].sort_values(ascending=False)

median_house_value    1.000000
median_income         0.687151
total_rooms           0.135140
housing_median_age    0.114146
households            0.064590
total_bedrooms        0.047781
population           -0.026882
longitude            -0.047466
latitude             -0.142673
Name: median_house_value, dtype: float64

from pandas.plotting import scatter_matrix

attributes = ['median_house_value', 'median_income', 'total_rooms', 'housing_median_age']
scatter_matrix(df[attributes], figsize=(15, 10))
plt.show()

数据清理

df_x = strat_train.drop('median_house_value', axis=1)
df_y = strat_train['median_house_value'].copy()
df_x.info()

<class 'pandas.core.frame.DataFrame'>
Int64Index: 16512 entries, 12655 to 19773
Data columns (total 9 columns):
 #   Column              Non-Null Count  Dtype
---  ------              --------------  -----
 0   longitude           16512 non-null  float64
 1   latitude            16512 non-null  float64
 2   housing_median_age  16512 non-null  float64
 3   total_rooms         16512 non-null  float64
 4   total_bedrooms      16354 non-null  float64
 5   population          16512 non-null  float64
 6   households          16512 non-null  float64
 7   median_income       16512 non-null  float64
 8   ocean_proximity     16512 non-null  object
dtypes: float64(8), object(1)
memory usage: 1.3+ MB

df_x[df_x['total_bedrooms'].isna()]

	longitude	latitude	housing_median_age	total_rooms	total_bedrooms	population	households	median_income	ocean_proximity
1606	-122.08	37.88	26.0	2947.0	NaN	825.0	626.0	2.9330	NEAR BAY
10915	-117.87	33.73	45.0	2264.0	NaN	1970.0	499.0	3.4193	<1H OCEAN
19150	-122.70	38.35	14.0	2313.0	NaN	954.0	397.0	3.7813	<1H OCEAN
4186	-118.23	34.13	48.0	1308.0	NaN	835.0	294.0	4.2891	<1H OCEAN
16885	-122.40	37.58	26.0	3281.0	NaN	1145.0	480.0	6.3580	NEAR OCEAN
...	...	...	...	...	...	...	...	...	...
1350	-121.95	38.03	5.0	5526.0	NaN	3207.0	1012.0	4.0767	INLAND
4691	-118.37	34.07	50.0	2519.0	NaN	1117.0	516.0	4.3667	<1H OCEAN
9149	-118.50	34.46	17.0	10267.0	NaN	4956.0	1483.0	5.5061	<1H OCEAN
16757	-122.48	37.70	33.0	4492.0	NaN	3477.0	1537.0	3.0546	NEAR OCEAN
13336	-117.67	34.04	13.0	1543.0	NaN	776.0	358.0	3.0598	INLAND

158 rows × 9 columns

df_x.fillna(0).loc[1606]

longitude              -122.08
latitude                 37.88
housing_median_age        26.0
total_rooms             2947.0
total_bedrooms             0.0
population               825.0
households               626.0
median_income            2.933
ocean_proximity       NEAR BAY
Name: 1606, dtype: object

# 使用Scikit-Learn中的填补方式
from sklearn.impute import SimpleImputer
imputer = SimpleImputer(strategy='median')  # 利用每列的中位数进行填补
df_num = df_x.drop('ocean_proximity', axis=1)
train_x = imputer.fit_transform(df_num)

from sklearn.preprocessing import OrdinalEncoder
ordinal_encoder = OrdinalEncoder()
df_cat_encoded = ordinal_encoder.fit_transform(df_cat)
df_cat_encoded[:10]

array([[1.],
       [4.],
       [1.],
       [4.],
       [0.],
       [3.],
       [0.],
       [0.],
       [0.],
       [0.]])

from sklearn.preprocessing import OneHotEncoder
onehot_encoder = OneHotEncoder()
df_cat_onehot = onehot_encoder.fit_transform(df_cat)
df_cat_onehot[:10].toarray()

array([[0., 1., 0., 0., 0.],
       [0., 0., 0., 0., 1.],
       [0., 1., 0., 0., 0.],
       [0., 0., 0., 0., 1.],
       [1., 0., 0., 0., 0.],
       [0., 0., 0., 1., 0.],
       [1., 0., 0., 0., 0.],
       [1., 0., 0., 0., 0.],
       [1., 0., 0., 0., 0.],
       [1., 0., 0., 0., 0.]])

自定义转化器

通过该转化器可以为特征(Character)增加新的属性(Attribute)：

1. 每户平均所用房间数: rooms_per_households.

2. 每户平均人口数：population_per_households.

3. 每间房的平均卧室数：bedrooms_per_rooms. （可选是否添加）

所需列的索引编号分别有 total_rooms, total_bedrooms, population, households

from sklearn.base import BaseEstimator, TransformerMixin

class CombinedAttributersAdder(BaseEstimator, TransformerMixin):
    def __init__(self, idxs, add_bedrooms_per_rooms=True):
        self.idxs = idxs
        self.add_bedrooms_per_rooms = add_bedrooms_per_rooms
    def fit(self, X, y=None):
        return self
    def transform(self, X):
        rooms_per_households = (X[:, self.idxs['total_rooms']] / X[:, self.idxs['households']]).reshape([-1,1])
        population_per_households = (X[:, self.idxs['population']] / X[:, self.idxs['households']]).reshape([-1,1])
        ret = [X, rooms_per_households, population_per_households]
        if self.add_bedrooms_per_rooms:
            ret.append((X[:, self.idxs['total_bedrooms']] / X[:, self.idxs['total_rooms']]).reshape([-1,1]))
        return np.concatenate(ret, axis=1)

idxs = dict([(col, i) for i, col in enumerate(df_x.columns)])
attr_adder = CombinedAttributersAdder(idxs, add_bedrooms_per_rooms=False)
df_extra_attribs = attr_adder.fit_transform(df_x.values)
df_extra_attribs.shape

(16512, 11)

attr_adder.set_params(add_bedrooms_per_rooms=False)
attr_adder.get_params()

{'add_bedrooms_per_rooms': False,
 'idxs': {'longitude': 0,
  'latitude': 1,
  'housing_median_age': 2,
  'total_rooms': 3,
  'total_bedrooms': 4,
  'population': 5,
  'households': 6,
  'median_income': 7,
  'ocean_proximity': 8}}

特征缩放

1. 归一化 MinMaxScaler，将数据集减去最小值后除以最大值，X = (X - np.min(X)) / np.max(X).

2. 标准化 StandardScaler，将数据集减去均值后除以标准差，X = (X - np.mean(X)) / np.std(X).

from sklearn.preprocessing import StandardScaler
from sklearn.preprocessing import MinMaxScaler
std_scaler = StandardScaler()
mm_scaler = MinMaxScaler()
X = np.array(df_x[['housing_median_age']])
scale1 = std_scaler.fit_transform(X)
scale2 = mm_scaler.fit_transform(X)
X1 = (X - np.mean(X)) / np.std(X)
X2 = (X - np.min(X)) / np.max(X)

转换流水线

在Scikit-Learn中 Pipline 是由一系列的转换器进行的堆叠（也就是必须要有 fit_transform() 函数），而堆叠的最后一个只需是一个估计器（也就是可以只有 fit() 函数），最后流水线也具有最后一个估计器的功能，如果最后一个估计器有 transform() 函数，那么流水线也有 fit_transform() 函数，如果最后一个估计器有 predict() 函数，那么流水线也具有 fit_predict() 函数.

Pipline 的构造函数包含一个元组列表，每个元组包含 (名称, 转化器)，第一个属性为转化器的名称，命名自定义（不包含双下划线，不能重复），第二个属性为转化器构造函数

from sklearn.pipeline import Pipeline

num_pipeline = Pipeline([
    ('imputer', SimpleImputer(strategy="median")),
    ('attribs_adder', CombinedAttributersAdder(idxs, add_bedrooms_per_rooms=True)),
    ('std_scaler', StandardScaler()),
])
df_num_tr = num_pipeline.fit_transform(df_num)
df_num_tr.shape

(16512, 11)

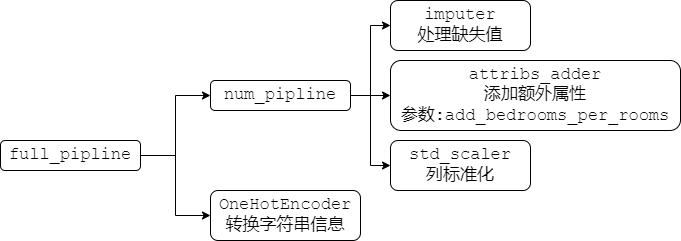

对不同列分别进行转换

由于原数据集中既有数字特征，也有文本特征，所以需要分别做预处理，sklearn.compose.ColumnTransformer 可以很好的完成这项操作. 它可以非常好的适配 DataFrame 数据类型，通过列索引找到需要处理的列，最后逇返回值，会根据最终矩阵的稠密度来判断是否使用稀疏矩阵还是密集矩阵（矩阵密度定义为非零值的占比，默认阈值为 sparse_threshold=0.3）

构造函数中，需要一个元组列表，每个元组包含 名称, 转化器, 列索引列表，名称同 Pipline 的要求（自定义，不重复，无双下划线），列索引列表可以直接为 DataFrame 中的列名.

from sklearn.compose import ColumnTransformer

# 从分层抽样后的训练数据中划分出特征与标签
df_x = strat_train.drop('median_house_value', axis=1)
df_num = df_x.drop('ocean_proximity', axis=1)  # 划分出纯数字特征，便于预处理
train_y = np.array(strat_train['median_house_value'])  # 注意不要破坏原始数据集

num_attribs = list(df_num)  # numeral
cat_attribs = ['ocean_proximity']  # category

full_pipline = ColumnTransformer([
    ('num', num_pipeline, num_attribs),  # 将数字使用之前的pipline进行转化
    ('cat', OneHotEncoder(), cat_attribs),  # 将字符串转化为one-hot类别
])

train_x = full_pipline.fit_transform(df_x)

选择与训练模型

这里我们将尝试三种基本机器学习模型，并选择其中较好的模型进一步微调：

1. 线性回归模型.

2. 决策树模型.

3. 随机森林模型.

# 线性回归
from sklearn.linear_model import LinearRegression

lin_reg = LinearRegression()
lin_reg.fit(train_x, train_y)  # 模型估计

x = train_x[:5]
y = train_y[:5]
print("Predictions:", lin_reg.predict(x))  # 预测结果
print("Labels", list(y))

Predictions: [ 85657.90192014 305492.60737488 152056.46122456 186095.70946094
 244550.67966089]
Labels [72100.0, 279600.0, 82700.0, 112500.0, 238300.0]

from sklearn.metrics import mean_squared_error
lin_mse = mean_squared_error(train_y, lin_reg.predict(train_x))
lin_rmse = np.sqrt(lin_mse)
print("Line RMSE:", lin_rmse)  # 欠拟合

Line RMSE: 68627.87390018745

# 决策树
from sklearn.tree import DecisionTreeRegressor

tree_reg = DecisionTreeRegressor()
tree_reg.fit(train_x, train_y)

tree_mse = mean_squared_error(train_y, tree_reg.predict(train_x))
tree_rmse = np.sqrt(tree_mse)
print("Tree RMSE:", tree_rmse)  # 严重过拟合

Tree RMSE: 0.0

交叉验证

一种简单的方法是使用 train_test_split 将训练集进一步划分为较小的训练集和验证集，然后使用较小的数据集进行训练，并在验证集上进行评估.

另一种方便的做法是使用Scikit-Learn中的K-折交叉验证功能 sklearn.model_selection.cross_val_score，假设 $K=10$，则具体做法是将训练集随机划分为10个不同的子集，每个子集称为一个折叠，对模型进行10次训练与评估——每次选取1个折叠作为验证集，剩余9个折叠作为训练集，返回一个包含10次评分的数组，评分规则可以在 scoring 属性中设定.

from sklearn.model_selection import cross_val_score
from sklearn.metrics import make_scorer

tree_scores = cross_val_score(tree_reg, train_x, train_y, scoring=make_scorer(mean_squared_error), cv=5)
lin_scores = cross_val_score(lin_reg, train_x, train_y, scoring=make_scorer(mean_squared_error), cv=5)

def display_scores(scores):
    print("得分:", scores)
    print("均值:", scores.mean())
    print("标准差:", scores.std())

print('决策树:')
display_scores(np.sqrt(tree_scores))

print('\n线性回归:')
display_scores(np.sqrt(lin_scores))  # 从均值可以看出决策树比线性回归还差

决策树:
得分: [69044.77910565 70786.57350426 68989.97289114 74120.47872383
 70840.03725076]
均值: 70756.36829512753
标准差: 1864.1267179081194

线性回归:
得分: [68076.63768302 67881.16711321 69712.97514343 71266.9225777
 68390.25096271]
均值: 69065.59069601327
标准差: 1272.9445955637493

# 随机森林模型
from sklearn.ensemble import RandomForestRegressor

forest_reg = RandomForestRegressor()
forest_reg.fit(train_x, train_y)
forest_scores = cross_val_score(forest_reg, train_x, train_y, scoring=make_scorer(mean_squared_error), cv=5)

print('随机森林:')
display_scores(np.sqrt(forest_scores))  # 均值最小，说明该模型效果不错

随机森林:
得分: [49944.24394028 50069.54102601 49720.76735777 51561.67277575
 51410.4086245 ]
均值: 50541.32674486087
标准差: 780.8734448089192

# 模型保存
import joblib

joblib.dump(forest_reg, "forest.pkl")
model_loaded = joblib.load("forest.pkl")

model_loaded.set_params(verbose=0)
model_loaded.predict(train_x[:5])  # 尝试简单预测

array([ 72910., 293380.,  81403., 124556., 228456.])

模型微调

可以从交叉验证结果看出随机森林效果不错，下面对其参数进行进一步微调.

网格搜索

通过Scikit-Learn的 sklearn.model_selection.GridSearchCV 可以方便的尝试模型不同给定的参数组合，其会在不同的参数组合下进行交叉验证，所以也有 cv 参数设置，交叉验证的打分结果默认为越大越好，所以是负的均方误差 neg_mean_squared_error.

from sklearn.model_selection import GridSearchCV
from sklearn.ensemble import RandomForestRegressor

params_grid = [
    {'n_estimators': [3, 10, 30], 'max_features': [2, 4, 6, 8]},
    {'bootstrap': [False], 'n_estimators': [3, 10], 'max_features': [2, 3, 4]},
]
forest_reg = RandomForestRegressor(random_state=42)

grid_search = GridSearchCV(forest_reg, params_grid, cv=5, scoring='neg_mean_squared_error', return_train_score=True)
grid_search.fit(train_x, train_y)

# 输出最好的组合及得分
print("参数组合:", grid_search.best_params_)
print("得分:", np.sqrt(-grid_search.best_score_))

参数组合: {'max_features': 8, 'n_estimators': 30}
得分: 49898.98913455217

# 输出不同参数对应的均值RMSE
cvres = grid_search.cv_results_
for mean_score, params in zip(cvres['mean_test_score'], cvres['params']):
    print(np.sqrt(-mean_score), params)

63895.161577951665 {'max_features': 2, 'n_estimators': 3}
54916.32386349543 {'max_features': 2, 'n_estimators': 10}
52885.86715332332 {'max_features': 2, 'n_estimators': 30}
60075.3680329983 {'max_features': 4, 'n_estimators': 3}
52495.01284985185 {'max_features': 4, 'n_estimators': 10}
50187.24324926565 {'max_features': 4, 'n_estimators': 30}
58064.73529982314 {'max_features': 6, 'n_estimators': 3}
51519.32062366315 {'max_features': 6, 'n_estimators': 10}
49969.80441627874 {'max_features': 6, 'n_estimators': 30}
58895.824998155826 {'max_features': 8, 'n_estimators': 3}
52459.79624724529 {'max_features': 8, 'n_estimators': 10}
49898.98913455217 {'max_features': 8, 'n_estimators': 30}
62381.765106921855 {'bootstrap': False, 'max_features': 2, 'n_estimators': 3}
54476.57050944266 {'bootstrap': False, 'max_features': 2, 'n_estimators': 10}
59974.60028085155 {'bootstrap': False, 'max_features': 3, 'n_estimators': 3}
52754.5632813202 {'bootstrap': False, 'max_features': 3, 'n_estimators': 10}
57831.136061214274 {'bootstrap': False, 'max_features': 4, 'n_estimators': 3}
51278.37877140253 {'bootstrap': False, 'max_features': 4, 'n_estimators': 10}

pd.DataFrame(grid_search.cv_results_)

	mean_fit_time	std_fit_time	mean_score_time	std_score_time	param_max_features	param_n_estimators	param_bootstrap	params	split0_test_score	split1_test_score	...	mean_test_score	std_test_score	rank_test_score	split0_train_score	split1_train_score	split2_train_score	split3_train_score	split4_train_score	mean_train_score	std_train_score
0	0.056342	0.003779	0.003243	0.000397	2	3	NaN	{'max_features': 2, 'n_estimators': 3}	-4.119912e+09	-3.723465e+09	...	-4.082592e+09	1.867375e+08	18	-1.155630e+09	-1.089726e+09	-1.153843e+09	-1.118149e+09	-1.093446e+09	-1.122159e+09	2.834288e+07
1	0.195027	0.017347	0.009637	0.001599	2	10	NaN	{'max_features': 2, 'n_estimators': 10}	-2.973521e+09	-2.810319e+09	...	-3.015803e+09	1.139808e+08	11	-5.982947e+08	-5.904781e+08	-6.123850e+08	-5.727681e+08	-5.905210e+08	-5.928894e+08	1.284978e+07
2	0.549724	0.007784	0.022255	0.000432	2	30	NaN	{'max_features': 2, 'n_estimators': 30}	-2.801229e+09	-2.671474e+09	...	-2.796915e+09	7.980892e+07	9	-4.412567e+08	-4.326398e+08	-4.553722e+08	-4.320746e+08	-4.311606e+08	-4.385008e+08	9.184397e+06
3	0.085986	0.001792	0.002960	0.000096	4	3	NaN	{'max_features': 4, 'n_estimators': 3}	-3.528743e+09	-3.490303e+09	...	-3.609050e+09	1.375683e+08	16	-9.782368e+08	-9.806455e+08	-1.003780e+09	-1.016515e+09	-1.011270e+09	-9.980896e+08	1.577372e+07
4	0.283107	0.012133	0.008094	0.000168	4	10	NaN	{'max_features': 4, 'n_estimators': 10}	-2.742620e+09	-2.609311e+09	...	-2.755726e+09	1.182604e+08	7	-5.063215e+08	-5.257983e+08	-5.081984e+08	-5.174405e+08	-5.282066e+08	-5.171931e+08	8.882622e+06
5	0.846614	0.018781	0.025807	0.006609	4	30	NaN	{'max_features': 4, 'n_estimators': 30}	-2.522176e+09	-2.440241e+09	...	-2.518759e+09	8.488084e+07	3	-3.776568e+08	-3.902106e+08	-3.885042e+08	-3.830866e+08	-3.894779e+08	-3.857872e+08	4.774229e+06
6	0.109496	0.001429	0.003194	0.000403	6	3	NaN	{'max_features': 6, 'n_estimators': 3}	-3.362127e+09	-3.311863e+09	...	-3.371513e+09	1.378086e+08	13	-8.909397e+08	-9.583733e+08	-9.000201e+08	-8.964731e+08	-9.151927e+08	-9.121998e+08	2.444837e+07
7	0.371871	0.006231	0.008252	0.000400	6	10	NaN	{'max_features': 6, 'n_estimators': 10}	-2.622099e+09	-2.669655e+09	...	-2.654240e+09	6.967978e+07	5	-4.939906e+08	-5.145996e+08	-5.023512e+08	-4.959467e+08	-5.147087e+08	-5.043194e+08	8.880106e+06
8	1.130365	0.010059	0.022360	0.000711	6	30	NaN	{'max_features': 6, 'n_estimators': 30}	-2.446142e+09	-2.446594e+09	...	-2.496981e+09	7.357046e+07	2	-3.760968e+08	-3.876636e+08	-3.875307e+08	-3.760938e+08	-3.861056e+08	-3.826981e+08	5.418747e+06
9	0.143730	0.002764	0.003008	0.000005	8	3	NaN	{'max_features': 8, 'n_estimators': 3}	-3.590333e+09	-3.232664e+09	...	-3.468718e+09	1.293758e+08	14	-9.505012e+08	-9.166119e+08	-9.033910e+08	-9.070642e+08	-9.459386e+08	-9.247014e+08	1.973471e+07
10	0.479244	0.002045	0.008288	0.000386	8	10	NaN	{'max_features': 8, 'n_estimators': 10}	-2.721311e+09	-2.675886e+09	...	-2.752030e+09	6.258030e+07	6	-4.998373e+08	-4.997970e+08	-5.099880e+08	-5.047868e+08	-5.348043e+08	-5.098427e+08	1.303601e+07
11	1.444280	0.008099	0.022597	0.000362	8	30	NaN	{'max_features': 8, 'n_estimators': 30}	-2.492636e+09	-2.444818e+09	...	-2.489909e+09	7.086483e+07	1	-3.801679e+08	-3.832972e+08	-3.823818e+08	-3.778452e+08	-3.817589e+08	-3.810902e+08	1.916605e+06
12	0.086494	0.001798	0.003198	0.000396	2	3	False	{'bootstrap': False, 'max_features': 2, 'n_est...	-4.020842e+09	-3.951861e+09	...	-3.891485e+09	8.648595e+07	17	-0.000000e+00	-4.306828e+01	-1.051392e+04	-0.000000e+00	-0.000000e+00	-2.111398e+03	4.201294e+03
13	0.284451	0.004976	0.009399	0.000489	2	10	False	{'bootstrap': False, 'max_features': 2, 'n_est...	-2.901352e+09	-3.036875e+09	...	-2.967697e+09	4.582448e+07	10	-0.000000e+00	-3.876145e+00	-9.462528e+02	-0.000000e+00	-0.000000e+00	-1.900258e+02	3.781165e+02
14	0.112028	0.007602	0.004233	0.001024	3	3	False	{'bootstrap': False, 'max_features': 3, 'n_est...	-3.687132e+09	-3.446245e+09	...	-3.596953e+09	8.011960e+07	15	-0.000000e+00	-0.000000e+00	-0.000000e+00	-0.000000e+00	-0.000000e+00	0.000000e+00	0.000000e+00
15	0.364553	0.003523	0.009679	0.000402	3	10	False	{'bootstrap': False, 'max_features': 3, 'n_est...	-2.837028e+09	-2.619558e+09	...	-2.783044e+09	8.862580e+07	8	-0.000000e+00	-0.000000e+00	-0.000000e+00	-0.000000e+00	-0.000000e+00	0.000000e+00	0.000000e+00
16	0.136975	0.001282	0.003008	0.000004	4	3	False	{'bootstrap': False, 'max_features': 4, 'n_est...	-3.549428e+09	-3.318176e+09	...	-3.344440e+09	1.099355e+08	12	-0.000000e+00	-0.000000e+00	-0.000000e+00	-0.000000e+00	-0.000000e+00	0.000000e+00	0.000000e+00
17	0.447112	0.003923	0.009294	0.000389	4	10	False	{'bootstrap': False, 'max_features': 4, 'n_est...	-2.692499e+09	-2.542704e+09	...	-2.629472e+09	8.510266e+07	4	-0.000000e+00	-0.000000e+00	-0.000000e+00	-0.000000e+00	-0.000000e+00	0.000000e+00	0.000000e+00

18 rows × 23 columns

grid_search.cv_results_.keys()

dict_keys(['mean_fit_time', 'std_fit_time', 'mean_score_time', 'std_score_time', 'param_max_features', 'param_n_estimators', 'param_bootstrap', 'params', 'split0_test_score', 'split1_test_score', 'split2_test_score', 'split3_test_score', 'split4_test_score', 'mean_test_score', 'std_test_score', 'rank_test_score', 'split0_train_score', 'split1_train_score', 'split2_train_score', 'split3_train_score', 'split4_train_score', 'mean_train_score', 'std_train_score'])

from sklearn.model_selection import RandomizedSearchCV
from scipy.stats import randint

params_distrib = [
    {'n_estimators': randint(28, 33), 'max_features': randint(7, 10)},
]
forest_reg = RandomForestRegressor(random_state=42)

rand_search = RandomizedSearchCV(forest_reg, params_distrib, cv=5, n_iter=20, random_state=42,
                                 scoring='neg_mean_squared_error', return_train_score=True)
rand_search.fit(train_x, train_y)

# 输出最好的组合及得分，可以看出随机组合的得分比网格搜索的结果更好
print("参数组合:", rand_search.best_params_)
print("得分:", np.sqrt(-rand_search.best_score_))

参数组合: {'max_features': 8, 'n_estimators': 32}
得分: 49842.263664875936

# 尝试过的组合及对应的打分
cvres = rand_search.cv_results_
for mean_score, params in zip(cvres['mean_test_score'], cvres['params']):
    print(np.sqrt(-mean_score), params)

50073.941984726036 {'max_features': 9, 'n_estimators': 31}
49928.56733204831 {'max_features': 7, 'n_estimators': 30}
49855.054296768314 {'max_features': 7, 'n_estimators': 32}
50154.159979801916 {'max_features': 9, 'n_estimators': 29}
50118.217225106 {'max_features': 9, 'n_estimators': 30}
50076.27434408333 {'max_features': 9, 'n_estimators': 32}
50076.27434408333 {'max_features': 9, 'n_estimators': 32}
49882.90700266577 {'max_features': 8, 'n_estimators': 31}
49911.07348226599 {'max_features': 8, 'n_estimators': 29}
49947.86413574509 {'max_features': 7, 'n_estimators': 28}
49842.263664875936 {'max_features': 8, 'n_estimators': 32}
49947.86413574509 {'max_features': 7, 'n_estimators': 28}
50118.217225106 {'max_features': 9, 'n_estimators': 30}
50154.159979801916 {'max_features': 9, 'n_estimators': 29}
50118.217225106 {'max_features': 9, 'n_estimators': 30}
50073.941984726036 {'max_features': 9, 'n_estimators': 31}
49928.56733204831 {'max_features': 7, 'n_estimators': 30}
49928.56733204831 {'max_features': 7, 'n_estimators': 30}
50076.27434408333 {'max_features': 9, 'n_estimators': 32}
49904.569413113204 {'max_features': 7, 'n_estimators': 29}

# 随机森林模型有每种类别的重要性分数
feature_importances = rand_search.best_estimator_.feature_importances_
# 进一步我们可以获得每种类别的重要度排名
extra_attribs = ['rooms_per_households', 'popultion_per_households', 'bedrooms_per_rooms']  # 额外加入的属性
cat_encoder = full_pipline.named_transformers_['cat']
cat_attribs = list(cat_encoder.categories_[0])  # 字符串列表
attributes = list(df_num) + extra_attribs + cat_attribs
sorted(zip(feature_importances, attributes), reverse=True)

[(0.38172022914549825, 'median_income'),
 (0.165994178010966, 'INLAND'),
 (0.10653004837910676, 'popultion_per_households'),
 (0.06894855994908974, 'longitude'),
 (0.059534576077903516, 'latitude'),
 (0.05392562234554215, 'rooms_per_households'),
 (0.04722669031431806, 'bedrooms_per_rooms'),
 (0.043182846603246804, 'housing_median_age'),
 (0.015983911178773656, 'population'),
 (0.015450335997150988, 'total_bedrooms'),
 (0.01527186966684709, 'total_rooms'),
 (0.014934070980648344, 'households'),
 (0.006547710175385619, '<1H OCEAN'),
 (0.0031214750700245385, 'NEAR OCEAN'),
 (0.0015469548512138229, 'NEAR BAY'),
 (8.092125428472885e-05, 'ISLAND')]

测试集上评估

model = rand_search.best_estimator_

df_x = strat_test.drop('median_house_value', axis=1)
test_y = np.array(strat_test['median_house_value'])

test_x = full_pipline.transform(df_x)  # 注意使用transform而不是fit_transform
test_pred = model.predict(test_x)

rmse = mean_squared_error(test_y, test_pred, squared=False)
rmse

47886.90979155171

# 计算泛化误差置信度为0.95的置信区间用来评估模型效果
from scipy import stats

confidence = 0.95
squared_errors = (test_y - test_pred) ** 2
np.sqrt(stats.t.interval(confidence, len(squared_errors)-1, loc=squared_errors.mean(), scale=stats.sem(squared_errors)))

array([45902.05283165, 49792.7083478 ])

练习题

1. 第一个练习题是使用SVM进行预测，看作者的代码结果效果并不如随机森林好，所以跳过.
2. 用 RandomizedSearchCV 替换 GridSearchCV，已经在上面对随机森林实验过了，效果不错.

3. 在流水线中添加一个转化器用于筛选重要信息

现有的流水线包括：

期望在 full_pipline 后面再加入 TopFeatureSelector 根据特征的重要性排序进行选择最高的特征值，具有属性 k 表示选取前 k 重要的属性值.

注意！！

由于对OneHotEncoder也在每次折叠数据中，由于包含 Island 的数据仅有5个，所以部分折叠数据集可能完全没有 Island，就会导致OneHotEncoder不会对其进行编码，导致列数目减少一个，所以一定要判断列数（其实正确做法应该是在数据读入进来时就将字符串数据进行OneHot表示，就不会有这些问题了）

arg_sorted = np.argsort(feature_importances)[::-1]
class TopFeatureSelector(BaseEstimator, TransformerMixin):
    def __init__(self, k=5):
        self.k = k
    def fit(self, x, y=None):
        return self
    def transform(self, x):
        now_arg = arg_sorted.copy()
        if x.shape[1] == 15:  # 如果输入数据中没有ISLAND列，将最后5列索引向前移
            now_arg[now_arg > 13] -= 1
        return x[:, now_arg[:self.k]]

preparer_and_selector_pipline = Pipeline([
    ('preparer', full_pipline),
    ('feature_selector', TopFeatureSelector()),
])

train_x_selected = preparer_and_selector.fit_transform(df_x)  # 经过重要度选择后的列
preparer_and_selector_pipline  # 显示完整预处理流水线

4. 创建一个覆盖完整的数据准备和最终预测的流水线

在 preparer_and_selector_pipline 的基础上加上预测器即可

df_train_x = strat_train.drop('median_house_value', axis=1)
complete_pipline = Pipeline([
    ('preparer_and_seletor', preparer_and_selector_pipline),
    ('model', RandomForestRegressor(**rand_search.best_params_)),
])
complete_pipline.fit(df_train_x, train_y)

# 测试集上进行计算得分
df_test_x = strat_test.drop('median_house_value', axis=1)
test_pred = complete_pipline.predict(df_test_x)
mean_squared_error(test_y, test_pred, squared=False)

49064.16896575968

5. 使用GridSearchCV自动探寻超参数

基于 complete_pipline 和双下划线 __ 可以修改内部估计器的超参数. 预计修改的超参数：

1. preparer_and_seletor__feature_selector__k：选择前 k 重要的特征，
2. preparer_and_seletor__preparer__num__imputer__strategy：三种填补缺失值策略 median, mean, most_frequent.

params_grid = [  # 总共尝试个数3x2x3=18
    {'preparer_and_seletor__preparer__cat__handle_unknown': ['ignore'],  # 关键，onehot编码可能在transform中见到fit中未见到的值，所以会报错，一定要加入ignore来保证输出结果正确
     'preparer_and_seletor__feature_selector__k': [5, 10, 15, 16],
     'preparer_and_seletor__preparer__num__imputer__strategy': ['median', 'mean', 'most_frequent']
    },
]

grid_search = GridSearchCV(complete_pipline, params_grid, cv=5, scoring='neg_mean_squared_error', verbose=2, error_score='raise')
grid_search.fit(df_train_x, train_y)

print('得分:', np.sqrt(-grid_search.best_score_))
print('参数:', grid_search.best_params_)

得分: 49934.92197039834
参数: {'preparer_and_seletor__feature_selector__k': 15, 'preparer_and_seletor__preparer__cat__handle_unknown': 'ignore', 'preparer_and_seletor__preparer__num__imputer__strategy': 'mean'}

print('测试集得分:', mean_squared_error(grid_search.best_estimator_.predict(df_test_x), test_y, squared=False))

测试集得分: 47935.68785194382
